Timber Acoustic Doors
SilentDoor RW® 35T (Timber)
High Performing 35dB Timber Acoustic Doorsets
Model Reference: SD-TAD35
SilentDoor RW® 35T (Timber) has a tri-layer acoustic core with an overall finished thickness of 50mm, with an acoustic attenuation of 35dBA. The inner core and solid perimeter/structural rails are manufactured incorporating acoustically insulating materials and finished with that all important outer skin. Each leaf is then single rebated to top and sides creating a tight seal. To the bottom of each leaf is an automatic drop seal.
Our 35dB timber acoustic doors are ideal for use in residential properties, where noise pollution can be a significant issue. These doors are engineered to provide excellent sound insulation, ensuring that any unwanted noise is kept out.
To offer versatility, a ‘Metal Frame’ option is also available for this doorset, catering to diverse aesthetic and functional preferences. With SilentDoor RW® 35T (Timber), experience the perfect blend of style, functionality, and peace of mind.
Suitable applications (recommendations are as follows)
SilentDoor 35Rw is ideally suited for Hotels, Schools & Universities, Auditoriums and Classroom environments.
Learn more on how much 5dB makes a difference, when choosing a SilentDoor RW® HERE
Fun Fact
Did you know that two SilentDoor RW® 35T doors together achieve a sound reduction of 38dB? In comparison, a single SilentDoor RW® 40T door would provide even greater impact.
Typical Buildups
Examples Of Past Doors
| Product Name | Approx kg/m2 | Rated | Leaf | Max Leaf Size (SINGLE) | Max Leaf Size (DOUBLE) | Rated | Vision Panel |
|---|---|---|---|---|---|---|---|
| SilientDoor Rw® 35T | 37 kg/m2 | 35dB | Single/ Double | 3500 H x 1290mm L | 3500 H x 2580mm L | Up to 120 Minutes | Possible |
| SilientDoor Rw® 40T | 43 kg/m2 | 40dB | Single/ Double | 3500 H x 1290mm L | 3500 H x 2580mm L | Up to 90 Minutes | Possible |
| SilientDoor Rw® 45T | 50 kg/m2 | 45dB | Single/ Double | 3500 H x 1290mm L | 3500 H x 2580mm L | Up to 90 Minutes | Possible |
| SilientDoor Rw® 50T | 60 kg/m2 | 50dB | Single/ Double | 3500 H x 1290mm L | 3500 H x 2580mm L | Up to 60 Minutes | Possible |
| SilientDoor Rw® 55T | 74 kg/m2 | 55dB | Single/ Double | 3500 H x 1290mm L | 3500 H x 2580mm L | Up to 90 Minutes | Possible |
| SilientDoor Rw® 60T | 83 kg/m2 | 60dB | Single | 3500 H x 1290mm L | N/A Single Only | NFR | N/A |
Door Openings
RIGHT
LEFT
Sections:
- 50mm thick door leaf with solid perimeter frame.
- 50mm thick door leaf with optional metal perimeter frame.
- Double Rebated doors (Three slides).
- Core constructed from timber and acoustic insulation materials.
- Frame made of solid wood, with MDF or plywood base.
- Glazed elements can be incorporated.
- Mechanical drop seal.
EN 1634-1 EN 1634-1
Did you know?
Two 35dB acoustic doorsets together match the soundproofing of a single 40dB doorset. In acoustics, a 5dB difference signifies a substantial improvement. As each 10dB increase represents a doubling of perceived loudness.
Examples of typologies

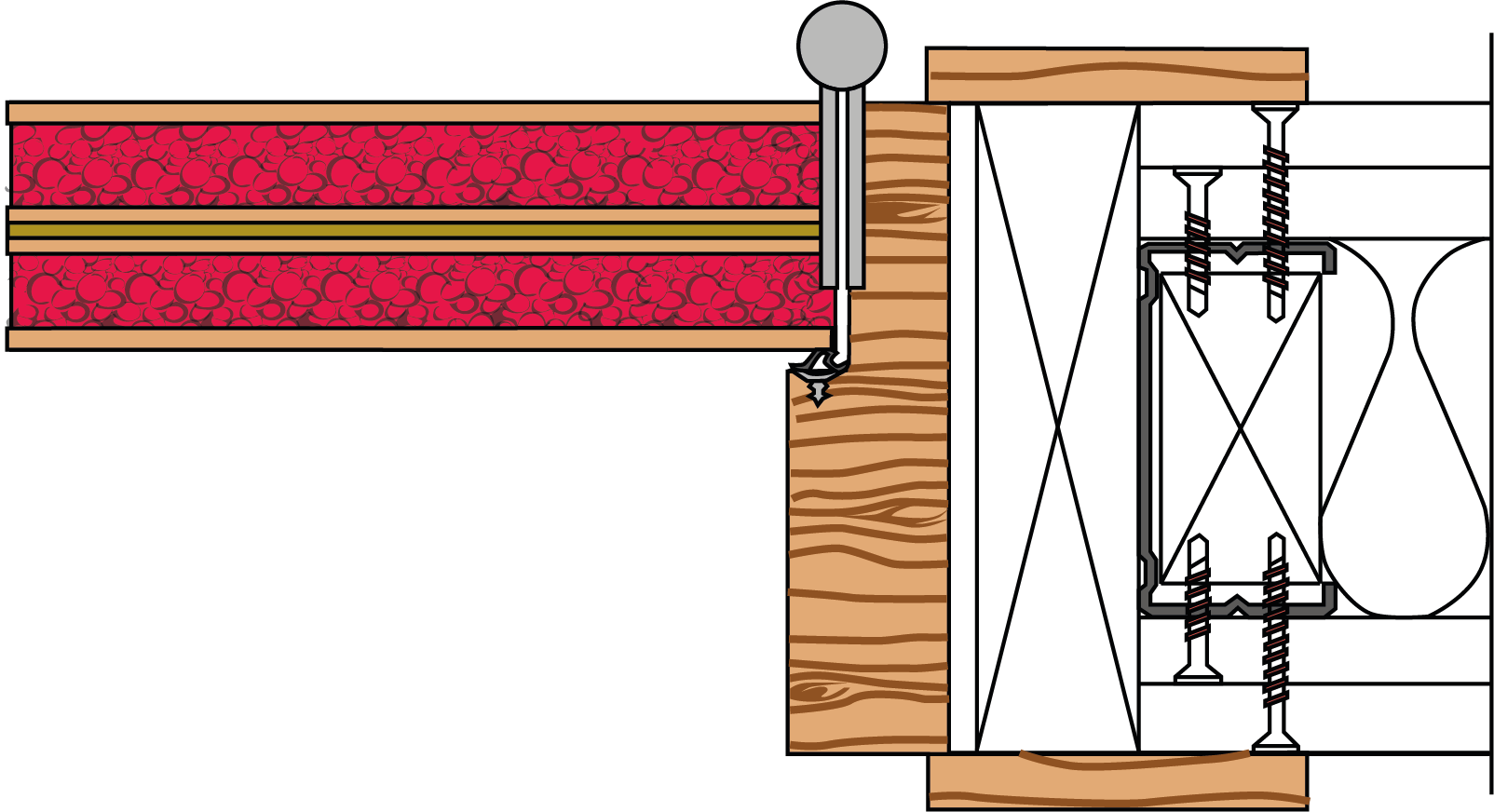

- 35 dB TIMBER FRAME EXPOSED HINGE

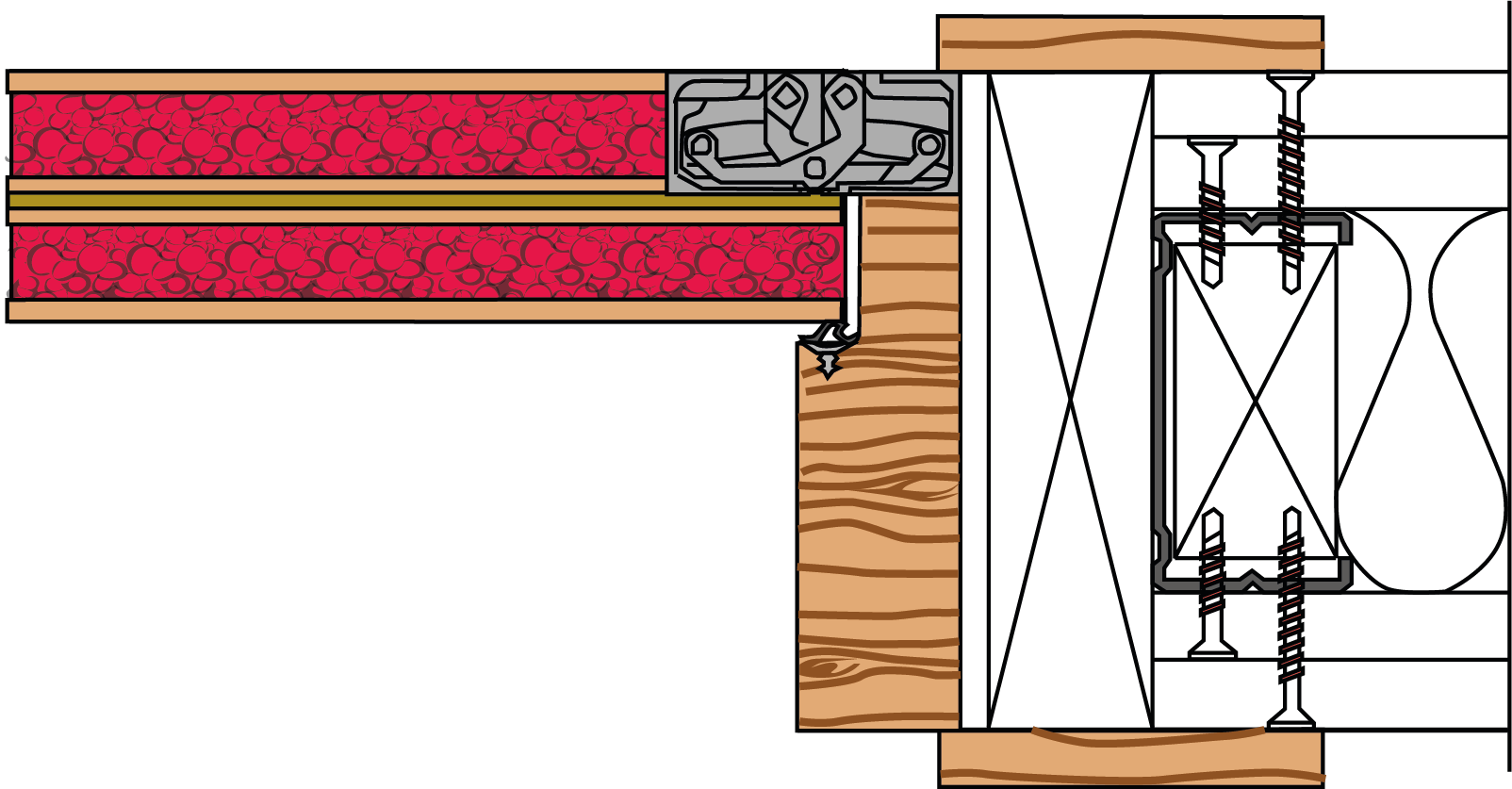

- 35 dB TIMBER FRAME CONCEALED HINGE
- 35 dB METAL FRAME EXPOSED HINGE
- 35 dB METAL FRAME CONCEALED HINGE
- 35 dB TIMBER FRAME FLUSH EXT. FACE EXPOSED HINGE
- 35 dB TIMBER FRAME FLUSH EXT. FACE CONCEALED HINGE
- 35 dB TIMBER FRAME FLUSH INNER F. CONCEALED HINGE
SilentDoor® Noise Reduction Calculator
1. Select a Noise Source
2. Choose a SilentDoor® Model
Original Sound: 50 dB
After SilentDoor®: 10 dB
Perceived Loudness: Breathing - 10 dB
Disclaimer:
This calculator is for indicative purposes only. We assume no liability for its use.
Custom Finishings (Veneered / Painted / Primed)
Wide range of veneers, Selection of laminates, or Factory-finished to any RAL colour.
For RAL options, visit https://www.ralcolorchart.com/ral-classic
Most Common Colours & Veneers Below.
