SilentDoor Rw® 50S (Steel)

Model Reference: SD-SAD50

Unleash the power of SilentDoor Rw® 50, our most sought-after acoustic rated door designed to deliver unmatched soundproofing capabilities. This tri-layer marvel consists of two layers of durable 1.5mm thick steel, enveloping an inner core meticulously crafted from high mass acoustic mineral fibre, resulting in an impressive finished leaf thickness of 80mm. The inner core and steel reinforcements/structural rails incorporate cutting-edge acoustically and thermally insulating materials, ensuring optimal performance.

To achieve superior sound insulation, each leaf is equipped with a flange on all four sides, complemented by fixed acoustic seals that create a seamless airtight seal.

Suitable applications (recommendations are as follows)

SilentDoor Rw® 50 is ideally suited for Recording studios, Hotels, Schools & Universities, Auditoriums & Audiology

Learn more on how much 5dB makes a difference, when choosing a Silentdoor Rw® HERE

• 80mm thick door leaf consisting of two (2) 1.5mm steel sheets.
• Internal steel reinforcements.
• Internal high mass mineral fibre.
• Fixed seals in flange to all four (4) sides and a ‘U’ shape to leaf bottom.
• Door sets have 140mm steel hinges with stainless ball bearings. Class 14 BS EN 1935.
• Glazed elements can be incorporated.

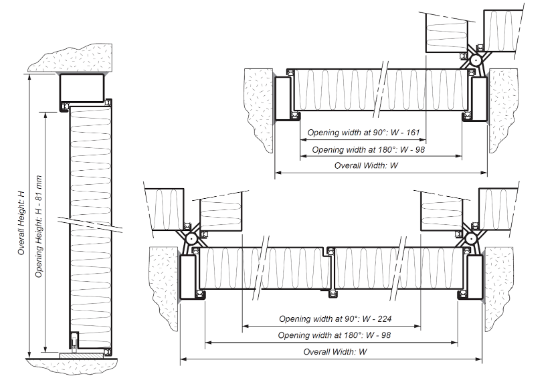

• Frame 50mm x 30mm steel box section with flange for jambs and 50mm x 50mm with flange for head.
