SilentDoor Rw® 45T (Timber)

High Performing 45dB Timber Acoustic Doorsets

45 dB

Acoustic Performance

50 kg/m2

Approx Weight

3500mm

Max Height

2580mm

Max Width

Model Reference: SD-TAD45

Bespoke Timber Acoustic Doors

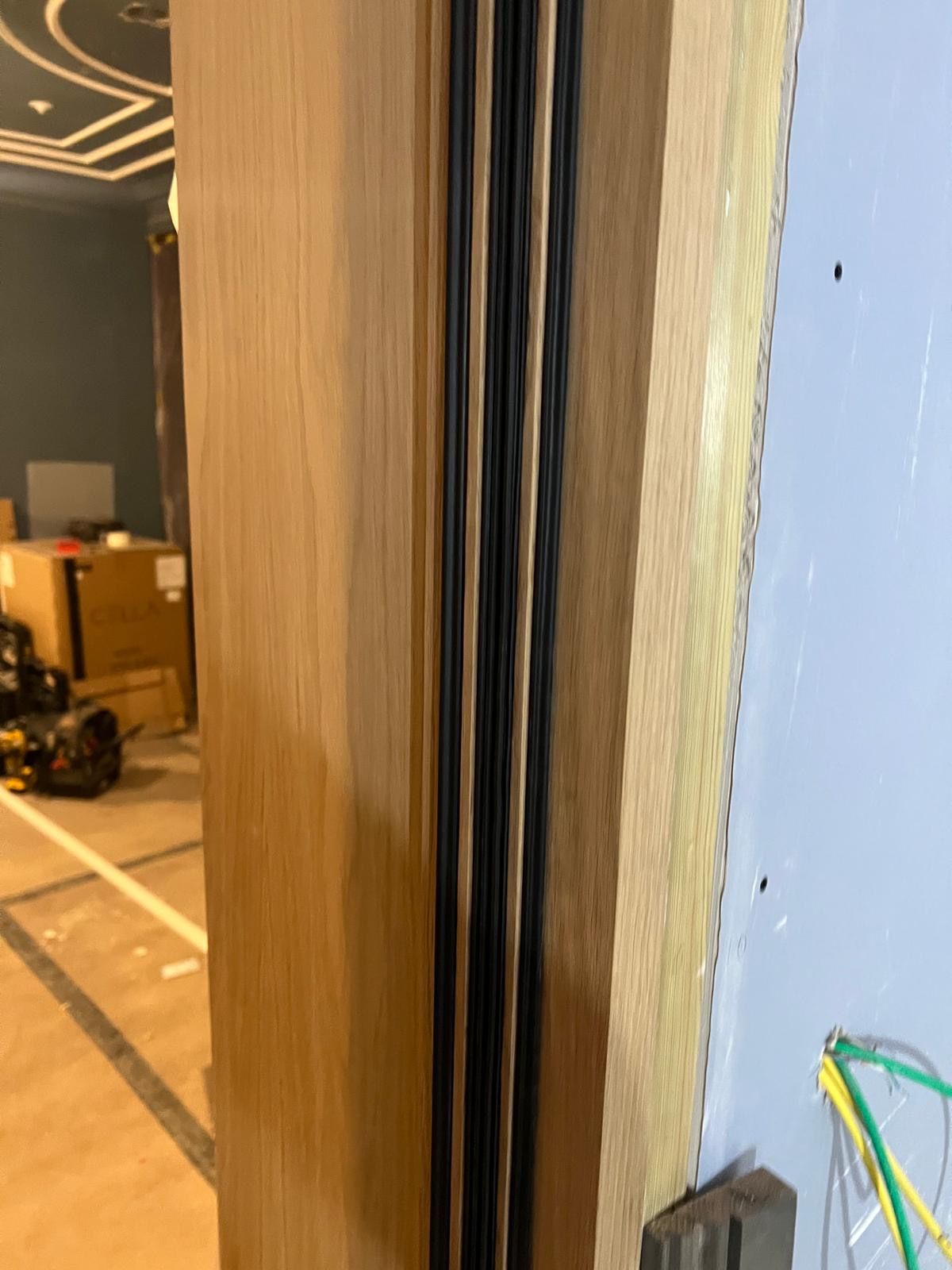

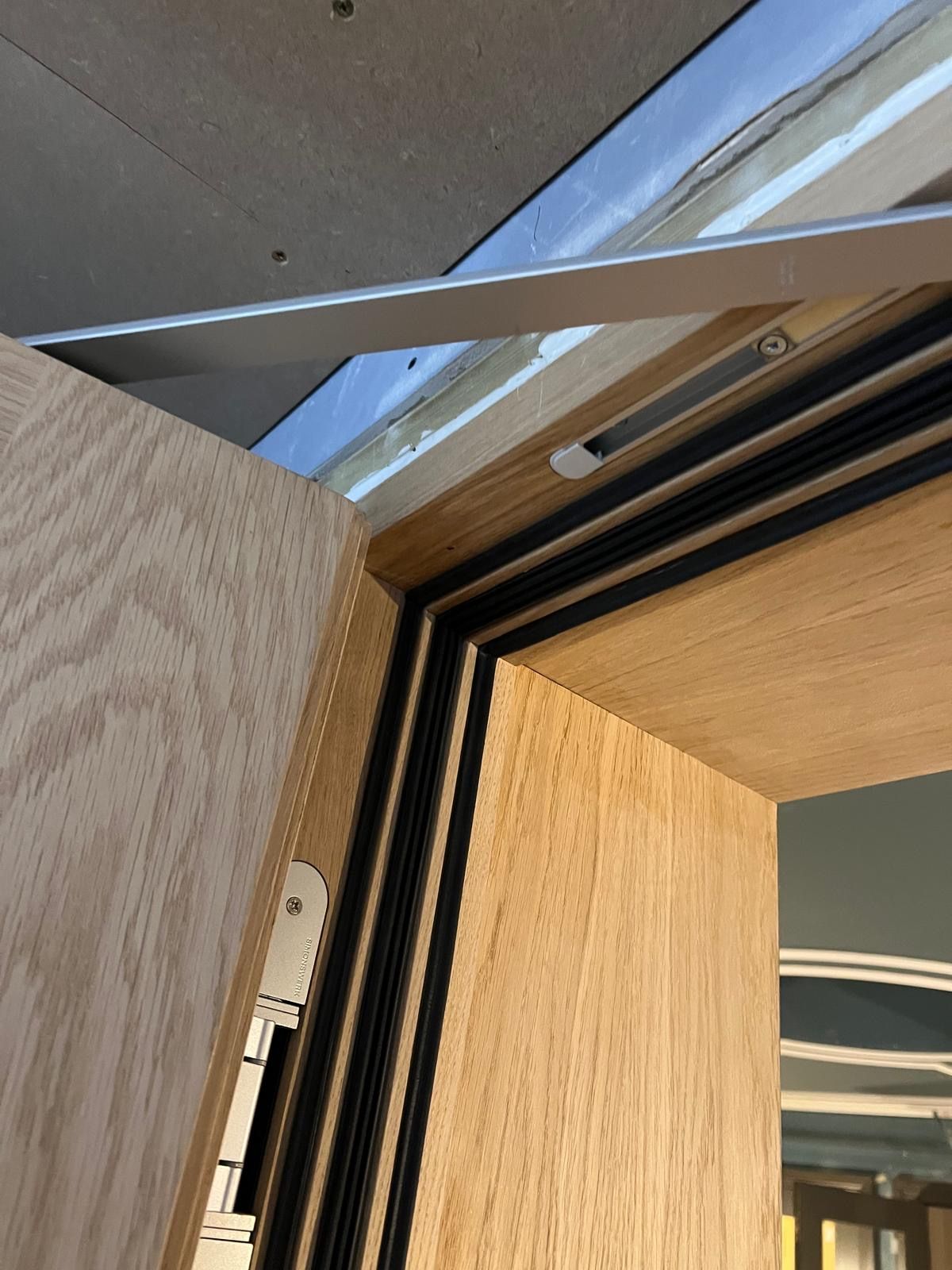

Silentdoor Rw® 45T (Timber) - available in a single or double leaf configuration - has a tri- layer acoustic core with an overall finished thickness of 65mm. The inner core and solid perimeter/structural rails are manufactured incorporating acoustically insulating materials and finished with that all important  outer skin. Each leaf is then double rebated to top and sides creating a twin seal, to the bottom of each leaf is a drop seal.


Our 45dB timber acoustic doors are designed for use in settings where a high level of soundproofing is required. These doors are ideal for use in recording studios, music rooms, and other sound-sensitive environments, where even the slightest noise can be disruptive.

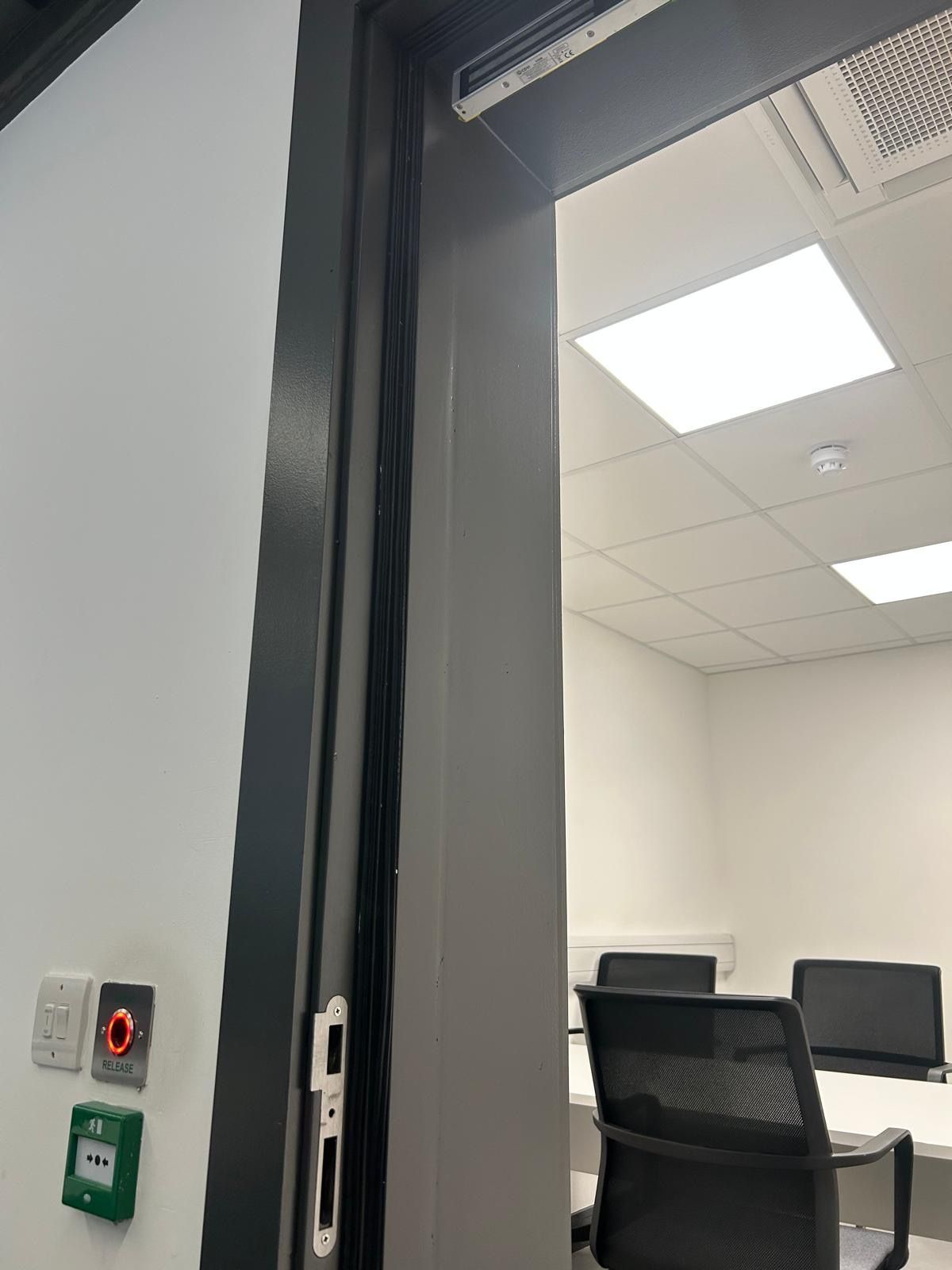

To offer versatility, a ‘Metal Frame’ option is also available for this doorset, catering to diverse aesthetic and functional preferences. With Silentdoor Rw® 45T (Timber), experience the perfect blend of style, functionality, and peace of mind.

Suitable applications (recommendations are as follows)

SilentDoor 45Rw is ideally suited for large Music Rooms and Conference Rooms.


Learn more on how much 5dB makes a difference, when choosing a Silentdoor Rw® HERE


Fun Fact

Did you know that two SilentDoor RW® 45T doors together achieve a sound reduction of 48dB? In comparison, a single SilentDoor RW® 50T door would provide even greater impact.

TDS Download NBS Download

Compare Door Performances


Not sure which SilentDoor Rw® model is right for your needs? Click below to compare the performance of all SilentDoor Rw® models

Click here to compare the performance of all SilentDoor Rw® models in a detailed graph, showcasing frequency vs. sound reduction (R dB) ratings across all options. Make an informed decision with side-by-side data visualisation!

Compare Doors
A drawing of a wooden staircase with a metal railing.
A drawing of a wooden door with a metal frame.

Veneers to Suit Your Specification

We offer a wide range of natural and engineered veneers to suit a variety of styles, finishes and project requirements.

Have a specific veneer in mind? Tell us what you’re looking for and we’ll source the closest suitable option for you.


Already have a veneer you want to match? Send us a photo and we’ll do our best to identify and match it, helping you achieve a consistent look across your doors and interiors.

Interactive Frequency Graph

Silentdoor Rw® 45T Frequency vs dB

Product Name Approx kg/m2 Rated Leaf Max Size (SINGLE) Max Size (DOUBLE) Rated Vision Panel
SilentDoor Rw® 35T 37 kg/m2 35dB Single/ Double 3500 H x 1290mm L 3500 H x 2580mm L Up to 120 Minutes Possible
SilentDoor Rw® 40T 43 kg/m2 40dB Single/ Double 3500 H x 1290mm L 3500 H x 2580mm L Up to 90 Minutes Possible
SilentDoor Rw® 45T 50 kg/m2 45dB Single/ Double 3500 H x 1290mm L 3500 H x 2580mm L Up to 90 Minutes Possible
SilentDoor Rw® 50T 60 kg/m2 50dB Single/ Double 3500 H x 1290mm L 3500 H x 2580mm L Up to 60 Minutes Possible
SilentDoor Rw® 55T 74 kg/m2 55dB Single/ Double 3500 H x 1290mm L 3500 H x 2580mm L Up to 90 Minutes N/A
SilentDoor Rw® 60T 83 kg/m2 60dB Single 3500 H x 1290mm L N/A Single Only NFR N/A

Door Openings

RIGHT

LEFT

A close up of two spools of wire on a white background.

Want A Quote?
Complete the Form

Sections:

  • 65mm thick door leaf with solid perimeter frame.

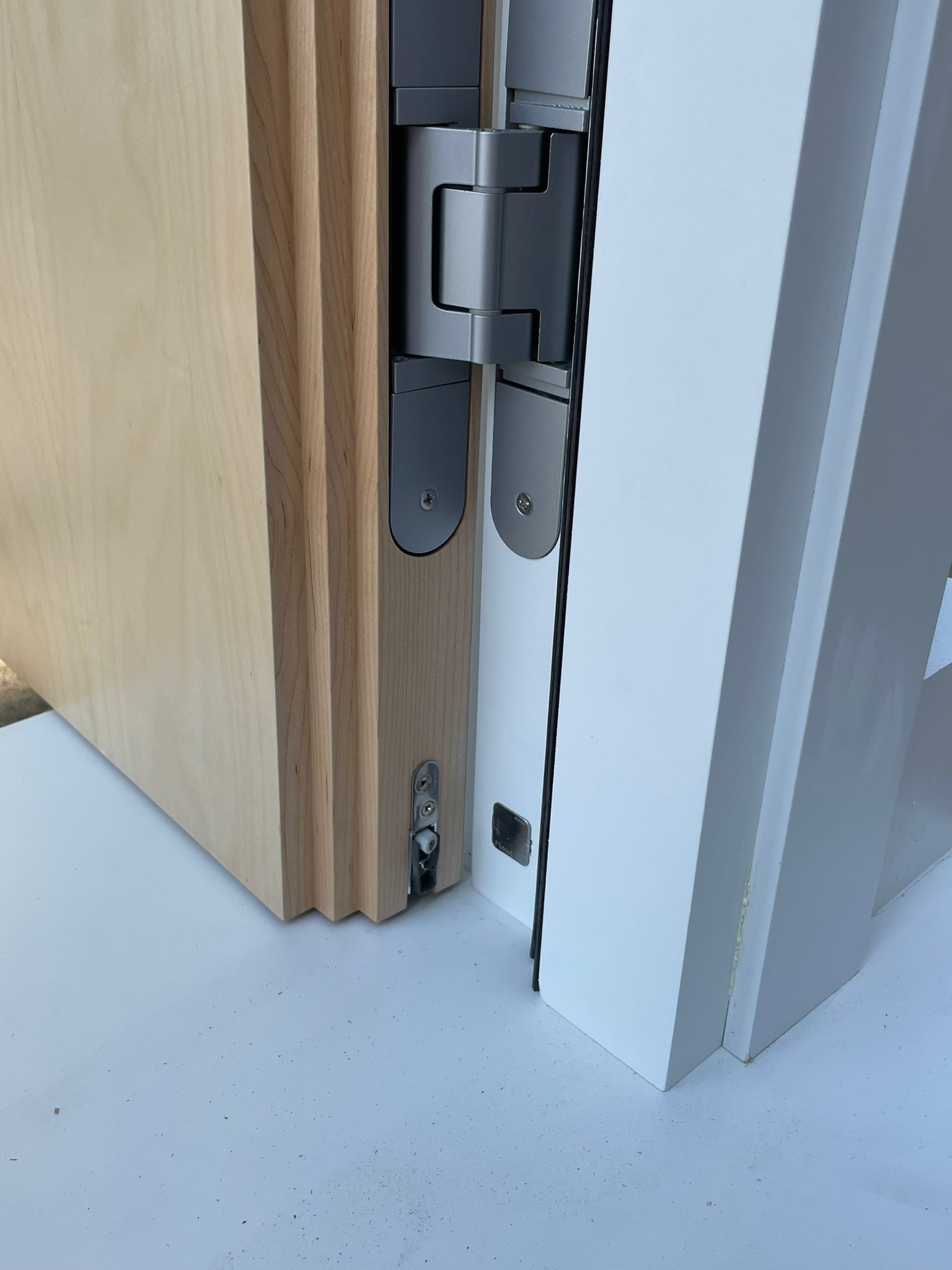

  • 70mm thick door leaf with optional concealed hinge.
  • Double Rebated doors (Three slides).
  • Core constructed from timber and acoustic insulation materials.
  • Frame made of solid wood, with MDF or plywood base.
  • Glazed elements can be incorporated.
  • Mechanical drop seal.


EN 1634-1 EN 1634-1

Did you know?

Two 45dB acoustic doorsets together match the soundproofing of a single 50dB doorset. In acoustics, a 5dB difference signifies a substantial improvement.  As each 10dB increase represents a doubling of perceived loudness.

Examples of typologies

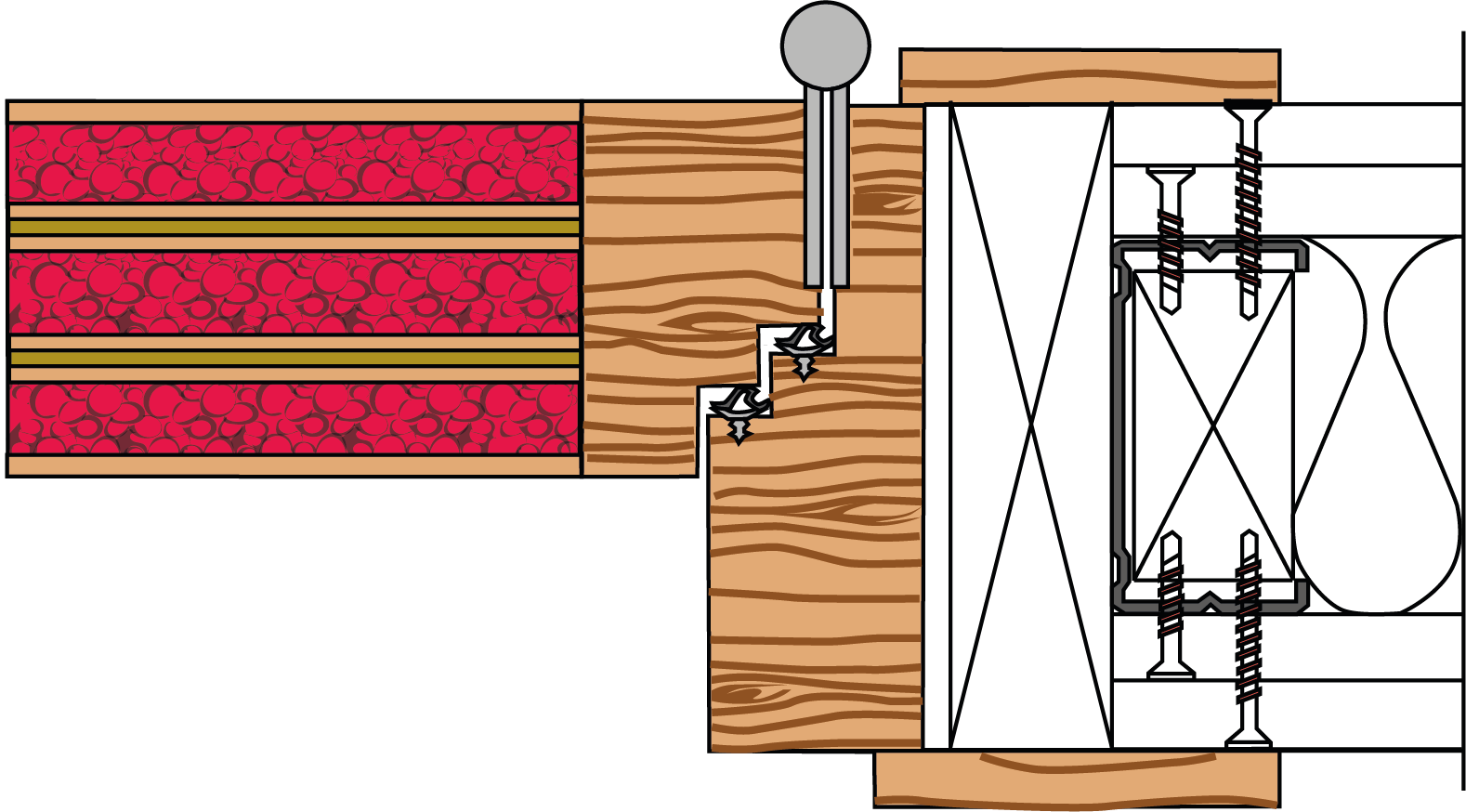

  • 45 dB TIMBER FRAME EXPOSED HINGE

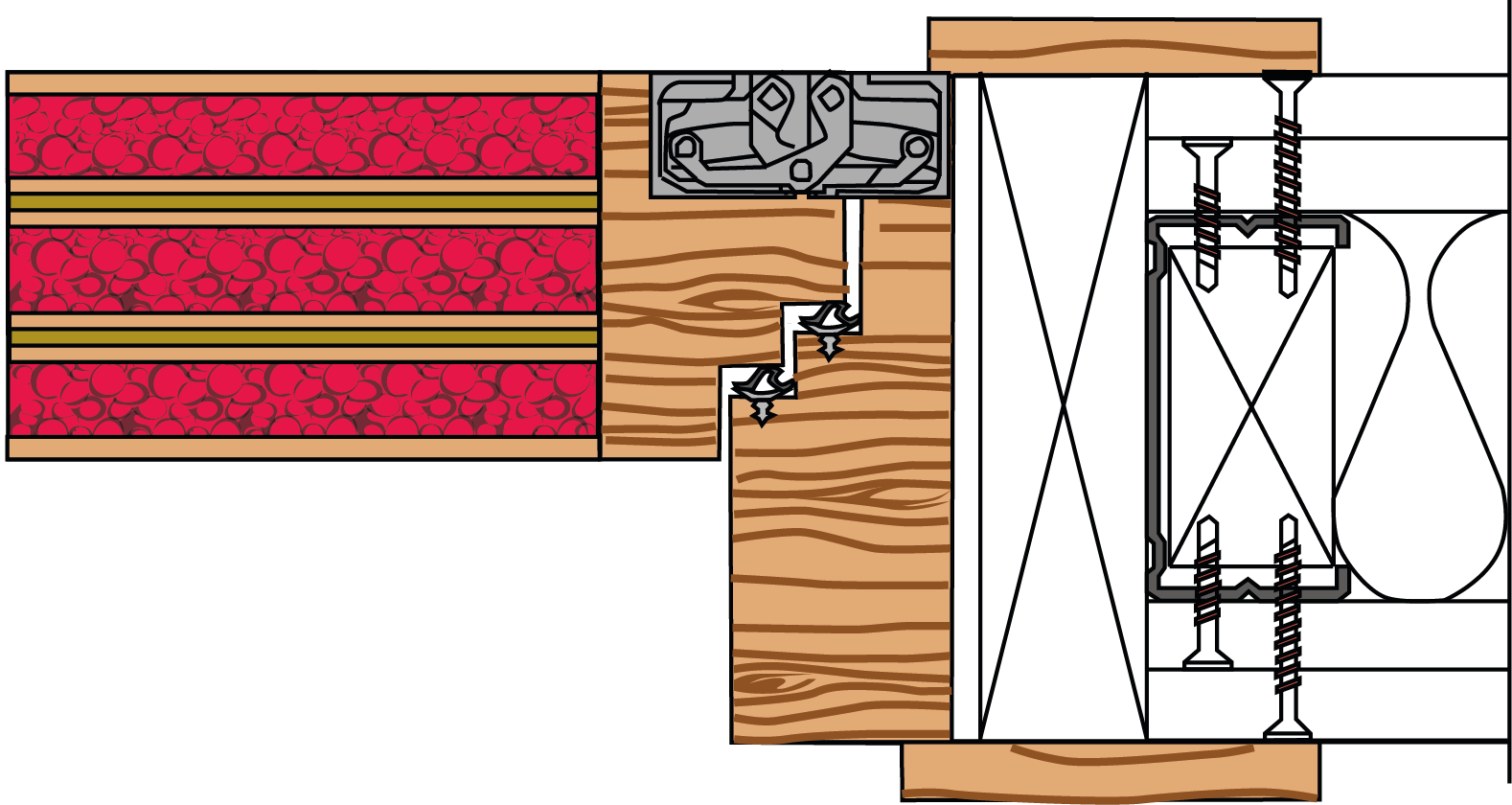

  • 45 dB TIMBER FRAME CONCEALED HINGE
  • 45 dB METAL FRAME EXPOSED HINGE
  • 45 dB METAL FRAME CONCEALED HINGE
  • 45 dB TIMBER FRAME FLUSH EXT. FACE EXPOSED HINGE
  • 45 dB TIMBER FRAME FLUSH EXT. FACE CONCEALED HINGE
  • 45 dB TIMBER FRAME FLUSH INNER F. CONCEALED HINGE
